LM-SP420

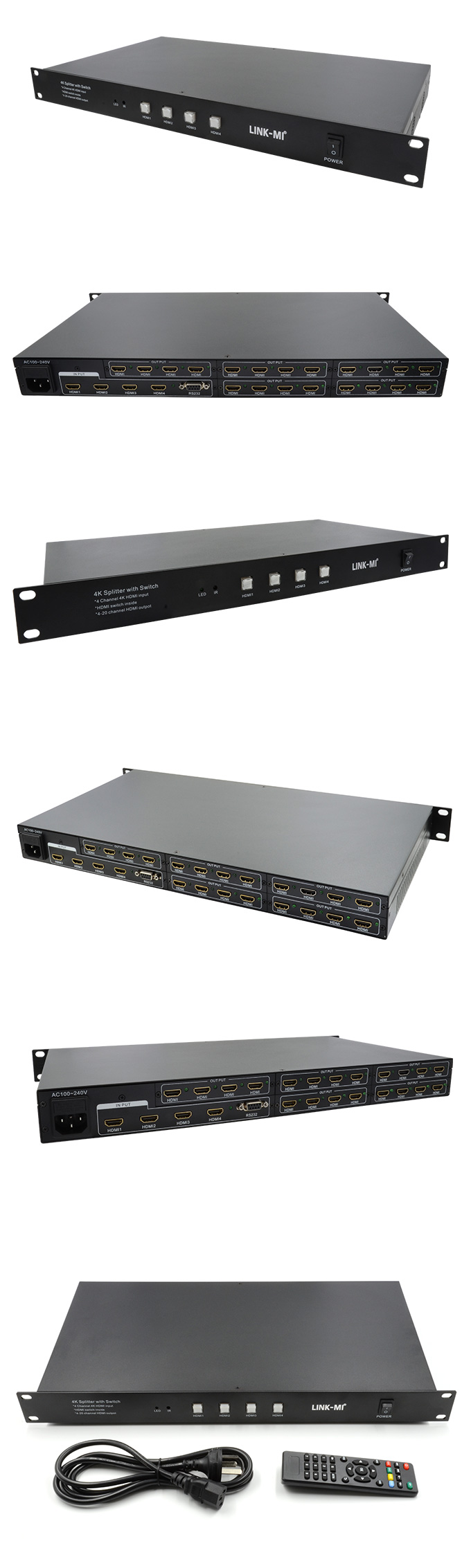

LINK-MI LM-SP420 4K Splitter with Switch

Introduction:
1, support 4 channel HDMI1.4 input, the maximum resolution can reach 3840*2160@30Hz or 4096*2160@24Hz;
2, support HDCP1.4 to solve blue DVD signal.

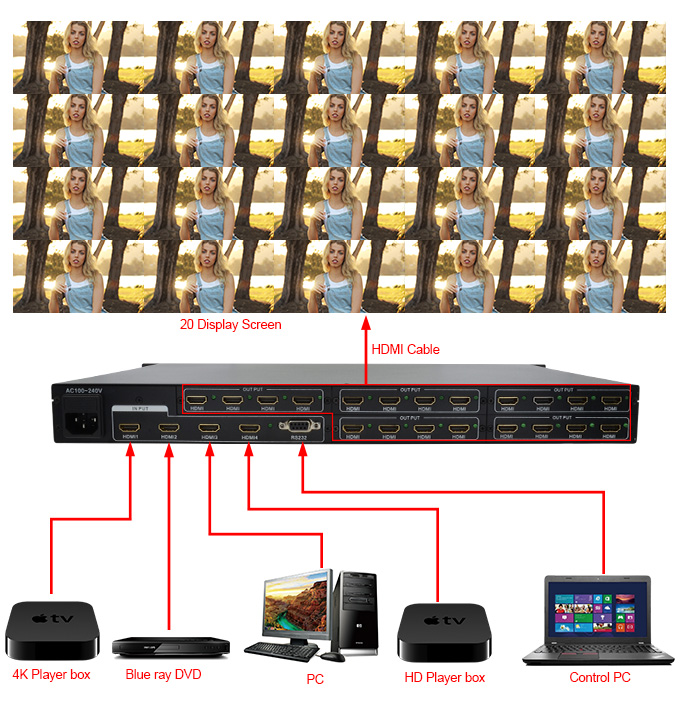

3, any HDMI signal can be selected to output to multiple screens.
4. Modular designed. The output can be customized according to the actual situation of customers. The single machine supports 4-20 channels of customized output.
5, output resolution is input resolution, up to 3840*2160@30Hz or 4096*2160@24Hz;
6, the maximum output distance can reach more than 20 meters.
7, the adoption of the standard 19 inch 1U chassis, 100-240V AC input, universal national.

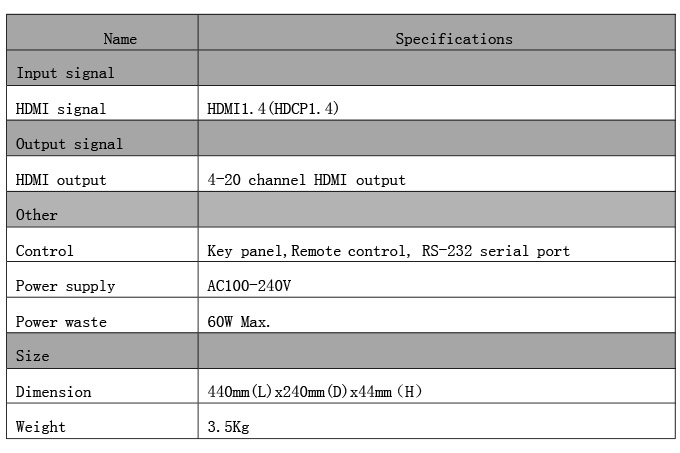

Description
