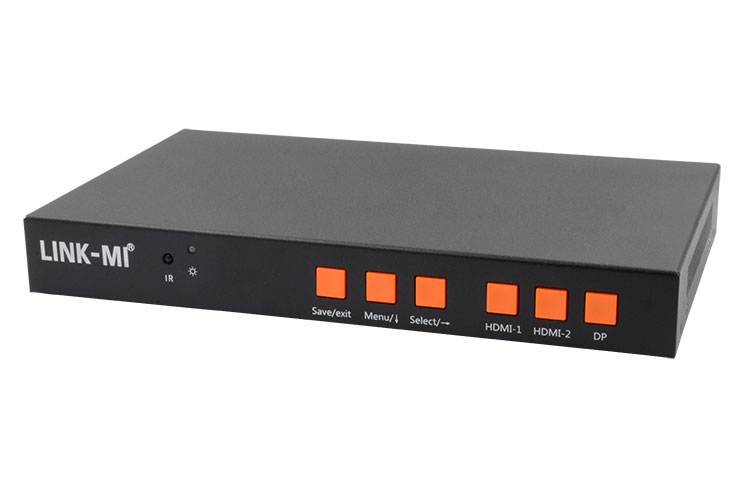

LM-R90U

LINK-MI LM-R90U phone mirror cast controller

Introduction:
1, HD image can be rotated in 90, 180, 270 degrees;
2, Image cutting, make the image display on vertical screen without distortion;
3, Can be supported 2 HDMI,1 DP,1 USB (customized) signals input;
4, Can be supported 2 HDMI output display 2 completely same image ;
5, Input resolution up to 3840x2160, output resolution is fix on 1920x1080@60HZ.
6, 4 signals can be switched to display screen;

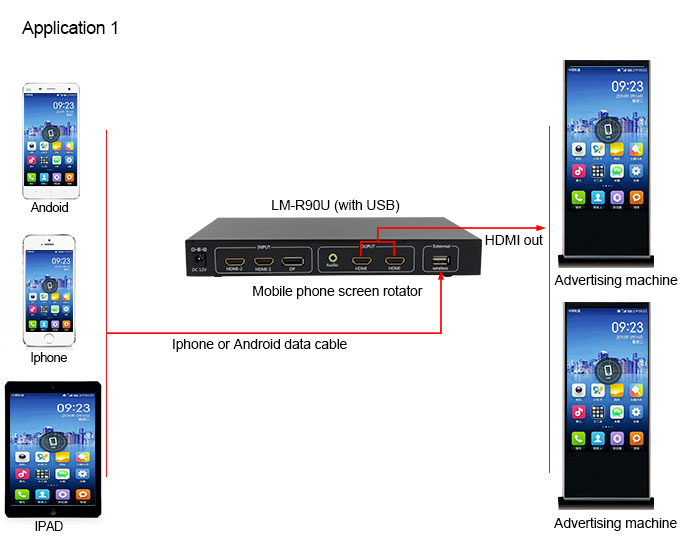

7, It is used in phones,iPad and shows display on vertical screen.

Description
